Corning® Pyrex® Extraction Apparatus with Allihn Condenser

By Corning
Corning® Pyrex® Extraction Apparatus with Allihn Condenser

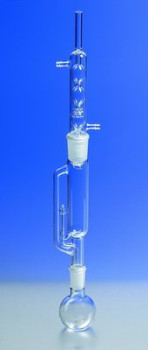

This Pyrex® extractor system consists of a Soxhlet extractor, an Allihn condenser, and a flask, all equipped with Standard Taper joints. The tubulation O.D. on the condenser is 10mm. Replacement parts are available. For glass extraction thimbles with fritted discs that can be used in these units in place of paper thimbles, see Cat.No. 1-33950 series.

Pyrex® Extraction Apparatus with Allihn Condenser


Cat.No. Brand Description Flask Size Joint Size, Inner Joint Size, Outer CS
1-3840-S Pyrex® Complete Extraction Apparatus 125mL t 24/40 t 34/45 No Price
1-3840-M Pyrex® Complete Extraction Apparatus 250mL t 24/40 t 45/50 No Price
1-3840-L Pyrex® Complete Extraction Apparatus 500mL t 24/40 t 55/50 No Price
1-3840-XL Pyrex® Complete Extraction Apparatus 1000mL 2t 9/42 t 71/60 No Price

Replacement Parts

For replacement Medium Condenser, see Cat.No. 1-3840-MCO.


Cat.No. Brand Description Flask Size Joint Size, Inner CS
1-3840-1LFO Pyrex® Flask Only (1L system) 1000mL   No Price
1-3840-LCO Pyrex® Condenser Only, Large (500mL system)   t 55/50 No Price
1-3840-SCO Pyrex® Condenser Only, Small (125mL system)   t 34/45 No Price
1-3840-XLCO Pyrex® Condenser Only, Extra Large (1L system)   t 71/60 No Price
