DWK Life Sciences Kontes 10mm NMR Tubes

DWK Life Sciences Kontes 10mm NMR Tubes

Kontes' precision 10mm sample tubes are used extensively in high resolution NMR spectroscopy. Tubes are manufactured under rigid quality control, assuring the highest quality. Generally, the precision tubes are used with 60 to 200 MHz NMR spectrometers. The ultra precision tubes, because of their low tolerances held in wall variation camber, are especially suitable for use in instruments at higher field strength (200-500 MHz). All Kontes NMR tubes are manufactured from ASTM Type1 borosilicate glass. Each tube is supplied with a cap. Disposable tubes are also available.

T.I.R. = Total Indicator Reading in inches.

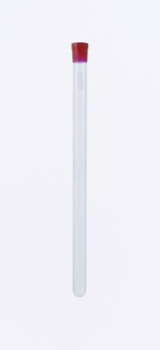

Kontes 10mm NMR Tubes

O.D. = 0.3937" (+0.0000/-0.0005"); I.D. =0.3569" (+0.0005/-0.0000")


Cat.No. Tube Diam Wilmad Equiv. Approx MHz Length Wall Thickness Wall Variation T.I.R. Camber T.I.R. O.D. I.D. EA   Certified
186-897320-0000 10mm 513-1PP-7 60 7" 0.0182" 0.0090" 0.0020" 0.3937" 0.3569" No Price
186-897320-0008 10mm   60 8 0.0182 0.0090 0.0020 0.3937 0.3569 No Price
186-897325-0000 10mm 513-3PP-7 80 7 0.0182 0.0030 0.0015 0.3937 0.3569 No Price
186-897330-0000 10mm 513-5PP-7 >150 7 0.0182 0.0020 0.0010 0.3937 0.3569 No Price
186-897330-0008 10mm   >150 8 0.0182 0.0020 0.0010 0.3937 0.3569 No Price
186-897335-0000 10mm 513-7PP-7 >360 7 0.0182 0.0015 0.0005 0.3937 0.3569 No Price
186-897335-0008 10mm   >360 8 0.0182 0.0015 0.0005 0.3937 0.3569 No Price

Kontes 10mm NMR Tubes, Disposable Grade

Kontes 10mm NMR Tubes, Disposable Grade

Supplied without caps.


Cat.No. Tube Diam Approx MHz Length Wall Thickness CS
186-897300-0000 10mm 100 7" 0.015" No Price
186-897300-0008 10mm 100 8 0.015 No Price
