Paramount® Ductless Enclosures

By Labconco
Paramount® Ductless Enclosures

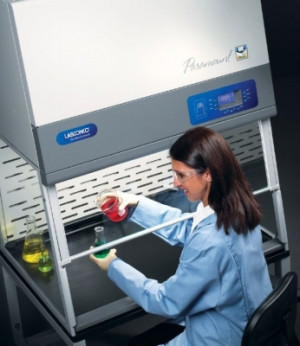

Paramount® Ductless Enclosures are self-contained work stations that use carbon filters to rid the laboratory of annoying or unsafe concentrations of organic solvents, formaldehyde, acid gases, ammonia, or radioisotopes. Unlike traditional fume hoods, they require no ducting so they can be moved from lab to lab. Paramount® Ductless Enclosures are capable of using both carbon and 99.99% efficient HEPA filters for removing gaseous and particulate contaminants. Filters used in the Paramount® are sold separately and come in seven types: Ammonia-Amine, Acid-Sulfur, Organic Vapor, Formaldehyde-Formalin, Radioisotope, Mixed Bed and HEPA.

Exclusive features include a patented slotted rear baffle to promote horizontal laminar air flow, Clean-Sweep™ air foil, upper containment sash foil and upper dilution air supply.

Other features:

  • Advanced electronic commutated motor (ECM) technology that uses less energy and runs quieter than comparable models
  • Organic chemical vapor sensor to detect chemicals breaking through the filter
  • Digital display of airflow and filter status
  • Touchpad control of enclosure operation
  • Ergonomic angled sash
  • Tempered safety glass front sash and sides
  • Epoxy coated aluminum frame

Width Filters Required
2' 2
3' 4
4' 6
5' 6
6' 8

Paramount® Ductless Enclosures


Cat.No. Name Voltage Dimensions EA   Certified
1195-6963200 2' Ductless Enclosure, Standard 115V 24.0" x 29.0" x 43.7" (W x H x D) No Price
1195-6963220 2' Ductless Enclosure, Standard 230V 24.0" x 29.0" x 43.7" No Price
1195-6963300 3' Ductless Enclosure, Standard 115V 36.0" x 29.0" x 43.7" No Price
1195-6963301 3' Ductless Enclosure, Tall 115V 36.0" x 29.0" x 53.0" No Price
1195-6963302 3' Ductless Enclosure, Tall with Clear Back and Baffle 115V 36.0" x 29.0" x 53.0" No Price
1195-6963320 3' Ductless Enclosure, Standard 230V 36.0" x 29.0" x 43.7" No Price
1195-6963321 3' Ductless Enclosure, Tall 230V 36.0" x 29.0" x 53.0" No Price
1195-6963322 3' Ductless Enclosure, Tall with Clear Back and Baffle 230V 36.0" x 29.0" x 53.0" No Price
1195-6963400 4' Ductless Enclosure, Standard 115V 48.0" x 29.0" x 43.7" No Price
1195-6963401 4' Ductless Enclosure, Tall 115V 48.0" x 29.0" x 53.0" No Price
1195-6963402 4' Ductless Enclosure, Tall with Clear Back and Baffle 115V 48.0" x 29.0" x 53.0" No Price
1195-6963403 4' Ductless Enclosure, Tall and Deep 115V 48.0" x 35.5" x 56.0" No Price
1195-6963420 4' Ductless Enclosure, Standard 230V 48.0" x 29.0" x 43.7" No Price
1195-6963421 4' Ductless Enclosure, Tall 230V 48.0" x 29.0" x 53.0" No Price
1195-6963422 4' Ductless Enclosure, Tall with Clear Back and Baffle 230V 48.0" x 29.0" x 53.0" No Price
1195-6963423 4' Ductless Enclosure, Tall and Deep 230V 48.0" x 35.5" x 56.0" No Price
1195-6963501 5' Ductless Enclosure, Tall 115V 60.0" x 29.0" x 53.0" No Price
1195-6963503 5' Ductless Enclosure, Tall and Deep 115V 60.0" x 35.5" x 56.0" No Price
1195-6963521 5' Ductless Enclosure, Tall 230V 60.0" x 29.0" x 53.0" No Price
1195-6963523 5' Ductless Enclosure, Tall and Deep 230V 60.0" x 35.5" x 56.0" No Price
1195-6963601 6' Ductless Enclosure, Tall 115V 72.0" x 29.0" x 53.0" No Price
1195-6963603 6' Ductless Enclosure, Tall and Deep 115V 72.0" x 35.5" x 56.0" No Price
1195-6963621 6' Ductless Enclosure, Tall 230V 72.0" x 29.0" x 53.0" No Price
1195-6963623 6' Ductless Enclosure, Tall and Deep 230V 72.0" x 35.5" x 56.0" No Price

Accessories

The Canopy Exhaust Transition allows the Paramount® Ductless Enclosure to be thimble-ducted to the outside for additional protection. The canopy's air gap provides a means of balancing air by allowing room air to enter the ductwork and mix with the filtered air being exhausted. House exhaust or remote blower and ductwork are required (not included). 6" (15cm) diameter outlet. 6' Paramount Enclosures require two Exhaust Transitions. Requires installation. Sash Closures have bi-fold doors allow the sash opening to be closed to prevent contaminants from entering the enclosure during periods of non-use. Include epoxy-coated steel doors and mounting hardware.


Cat.No. Brand Name Dimensions EA   Certified
1195-6963700 Paramount® Canopy Exhaust Transition   No Price
1195-6963900 Paramount® 2' Sash Closure 24" x 9.4" (W x H) No Price
1195-6963901 Paramount® 3' Sash Closure 36" x 9.4" No Price
1195-6963902 Paramount® 3' Sash Closure 36" x 12" No Price
1195-6963903 Paramount® 4' Sash Closure 48" x 9.4" No Price
1195-6963904 Paramount® 4' Sash Closure 48" x 12" No Price
1195-6963905 Paramount® 5' Sash Closure 60" x 9.4" No Price
1195-6963906 Paramount® 6' Sash Closure 72" x 12" No Price

Carbon Filters

For HEPA and Organic Vapor Filters, see Cat.Nos. 1195-6938100 and 1195-6938200.


Cat.No. Brand Name EA   Certified
1195-6938201 Paramount® Acid-Sulfur Carbon Filter No Price
1195-6938202 Paramount® Ammonia-Amine Carbon Filter No Price
1195-6938203 Paramount® Formaldehyde Carbon Filter No Price
1195-6938204 Paramount® Mixed Bed Carbon Filter No Price
1195-6938205 Paramount® Radioisotope Carbon Filter No Price
